3 Ton Three Phase Hoist - Dual Speed

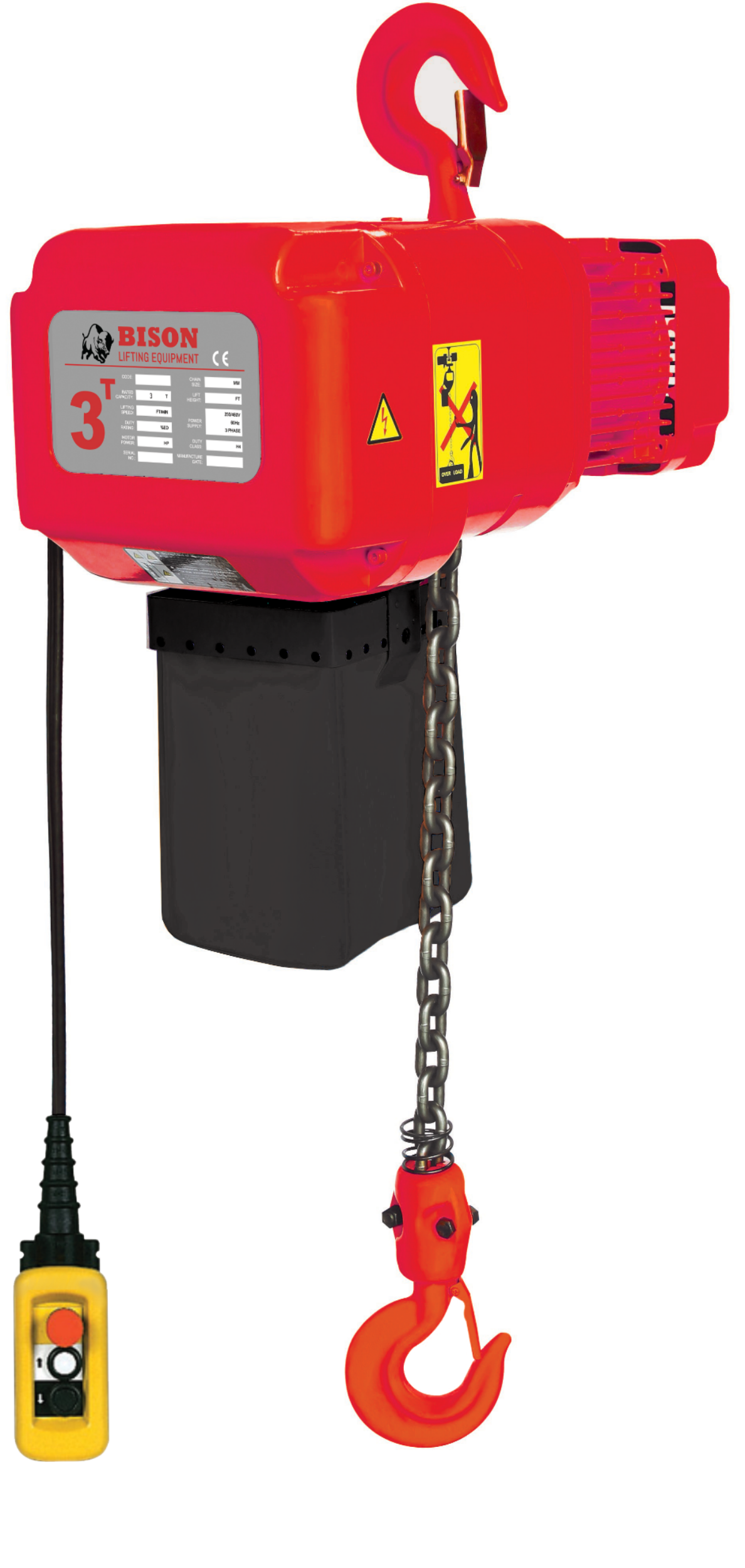

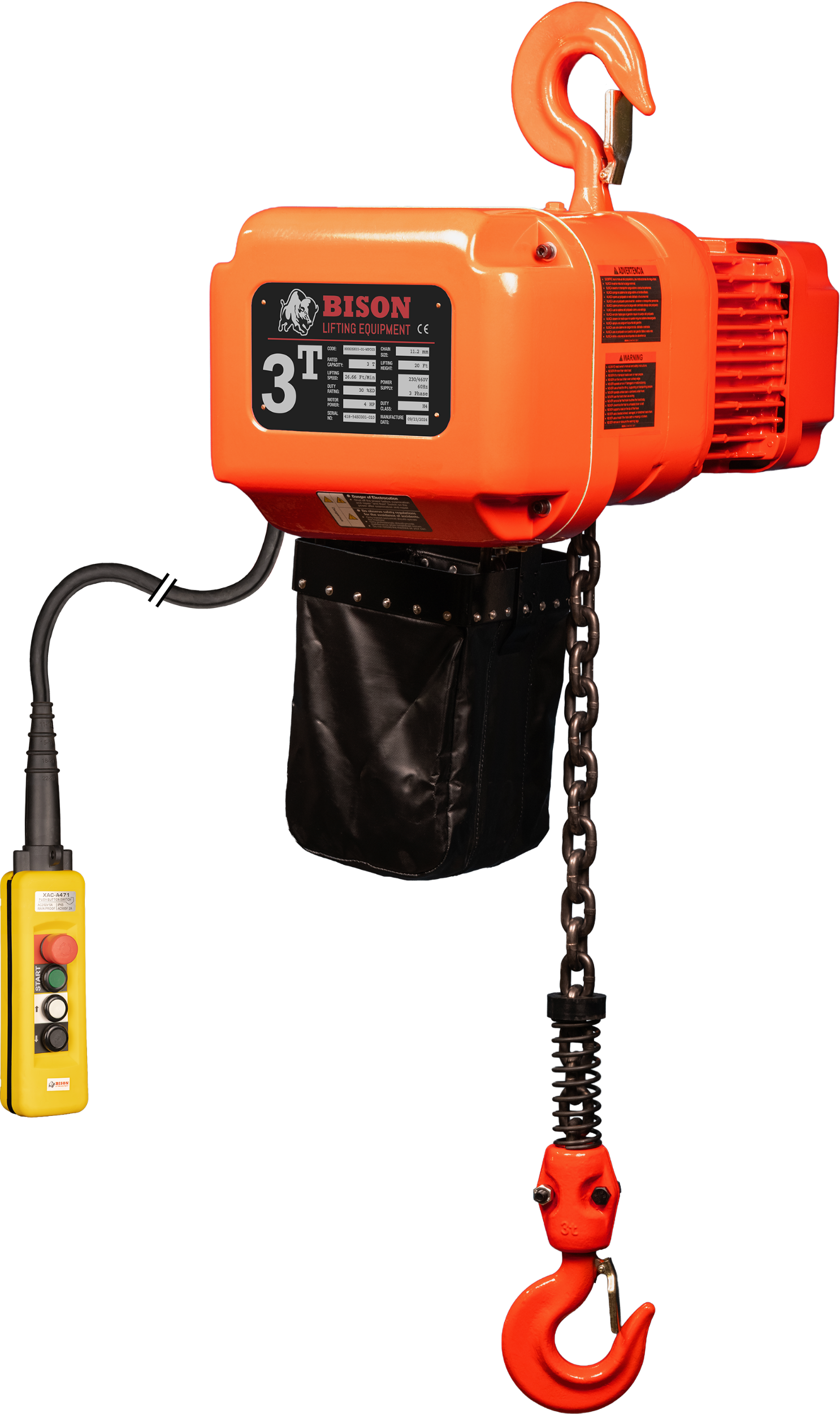

Picture of 3 Ton Three Phase Hoist - Dual Speed

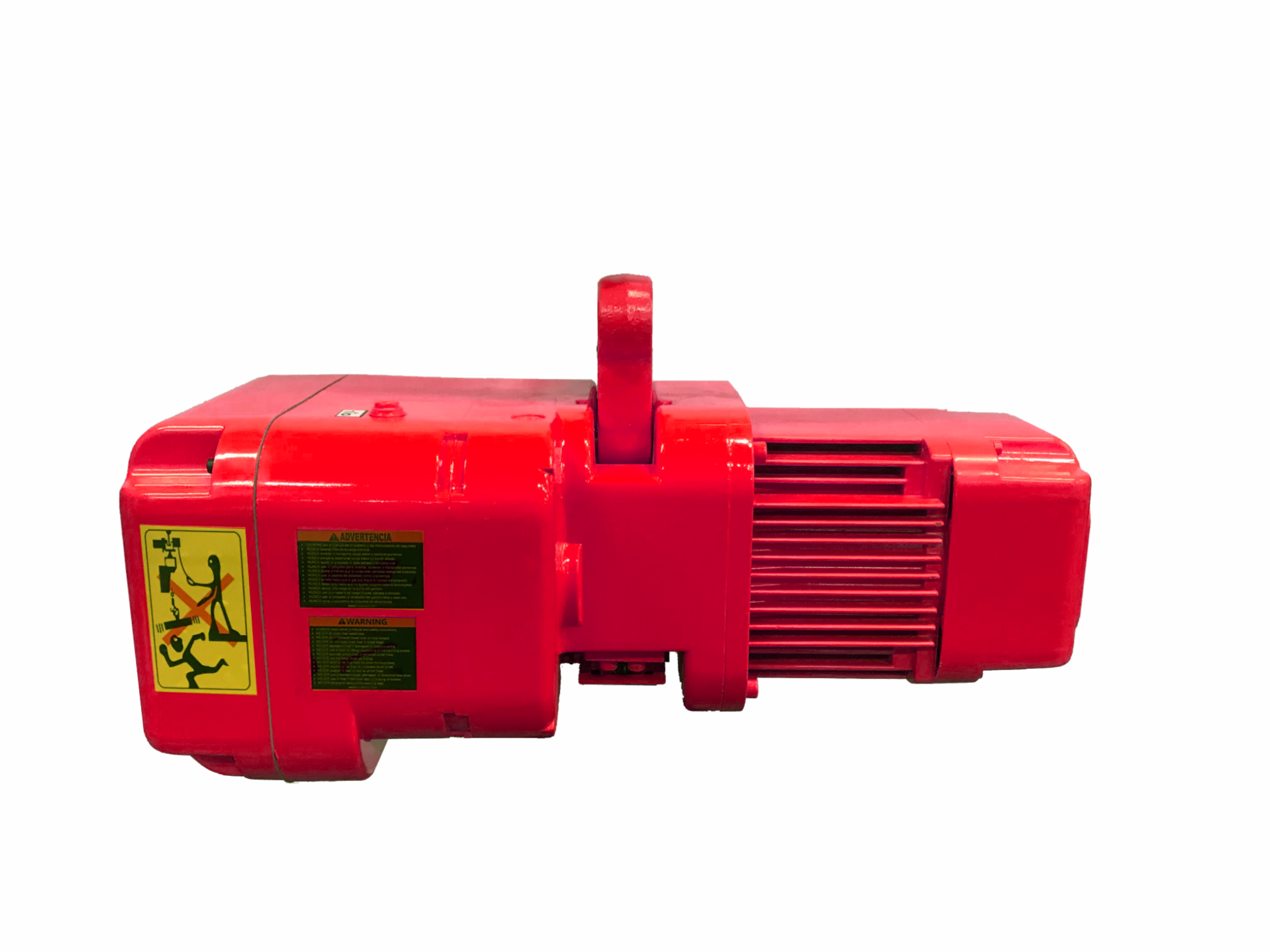

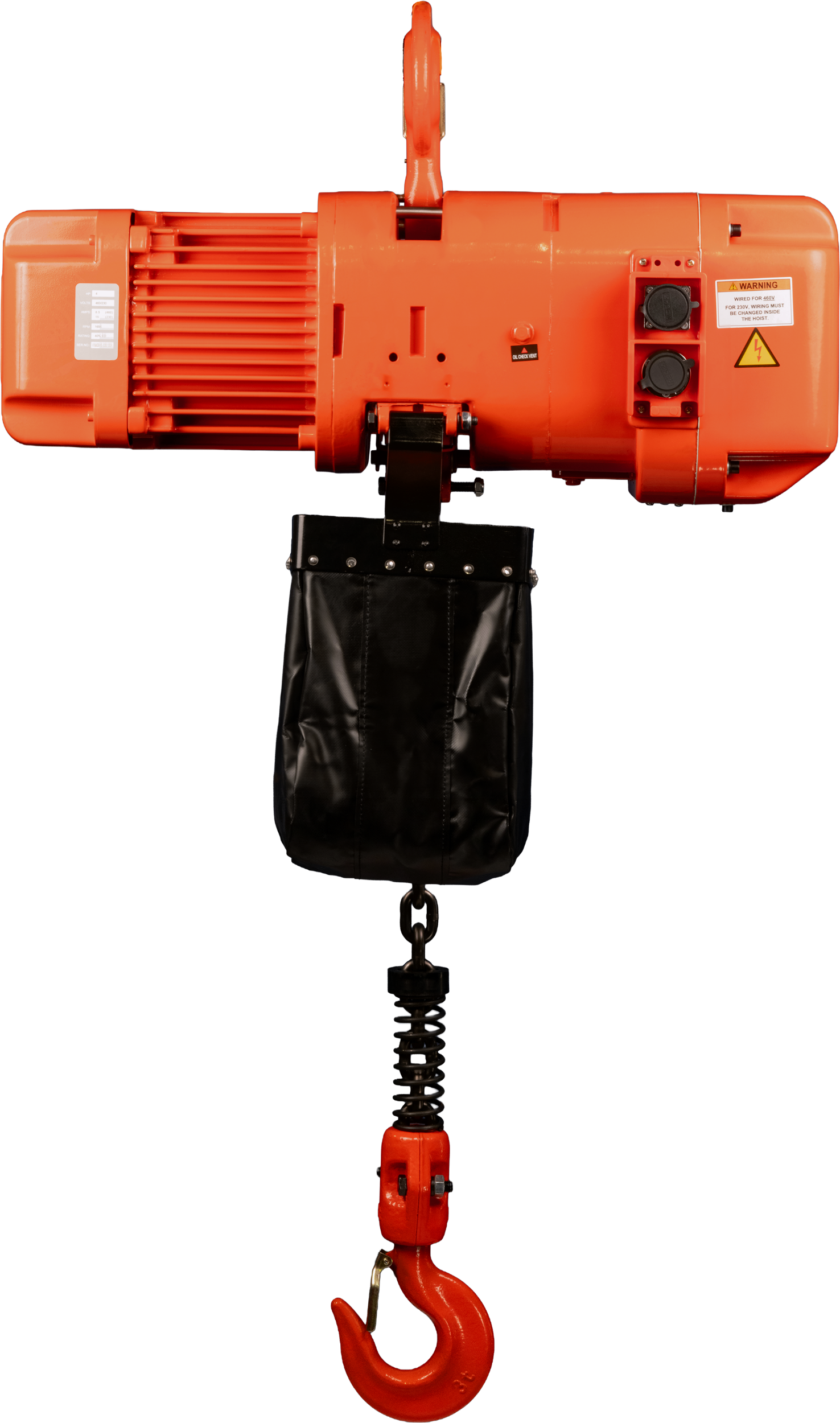

Bison Chain Hoist Side View
Bison Hoist Plug Connection
Bison Pendant Station
SKU: HHBD03SK-01D
Delivery date: 1-2 days
*
*
Dual Voltage All 3 phase hoists come standard from the factory wired for 460v power supply. This can easily be adjusted to 230v.

Overload Protection (friction clutch) Prevents operators from exceeding a hoist’s rated lifting capacity.

Compact Aluminum Body Die-cast body ensures a low headroom and lightweight construction.

Operating Conditions Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.

Pull-Rotor Motor Brake Superior mechanical force ensures a load is firmly held. Contains no disc brake.

Upper/Lower Limit Switches Mechanical paddle limit switches. Stops the load chain from progressing past its safe limitation.

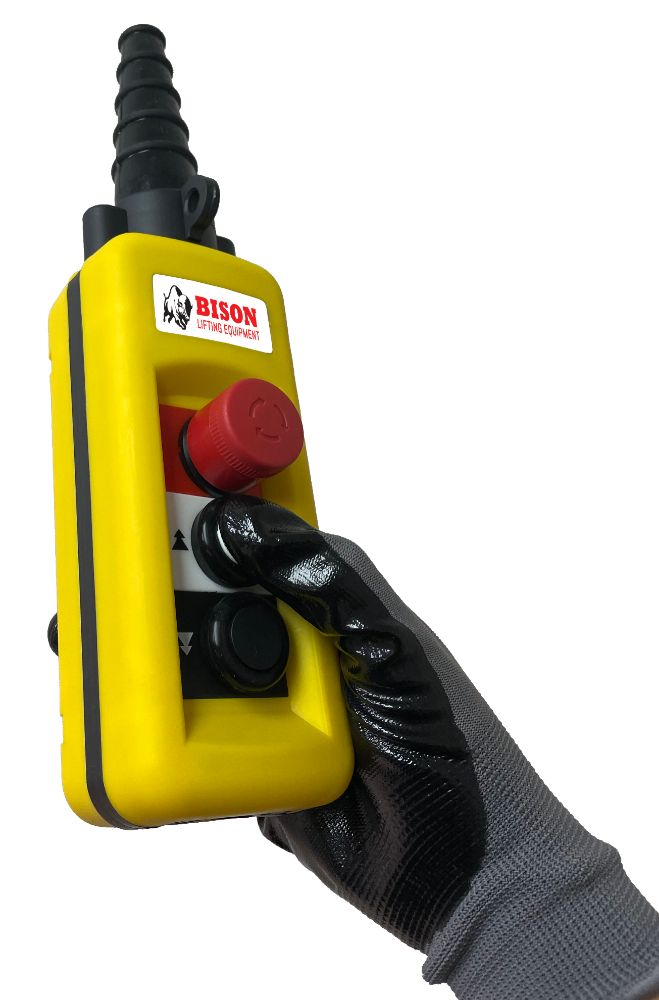

Pendant Control Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

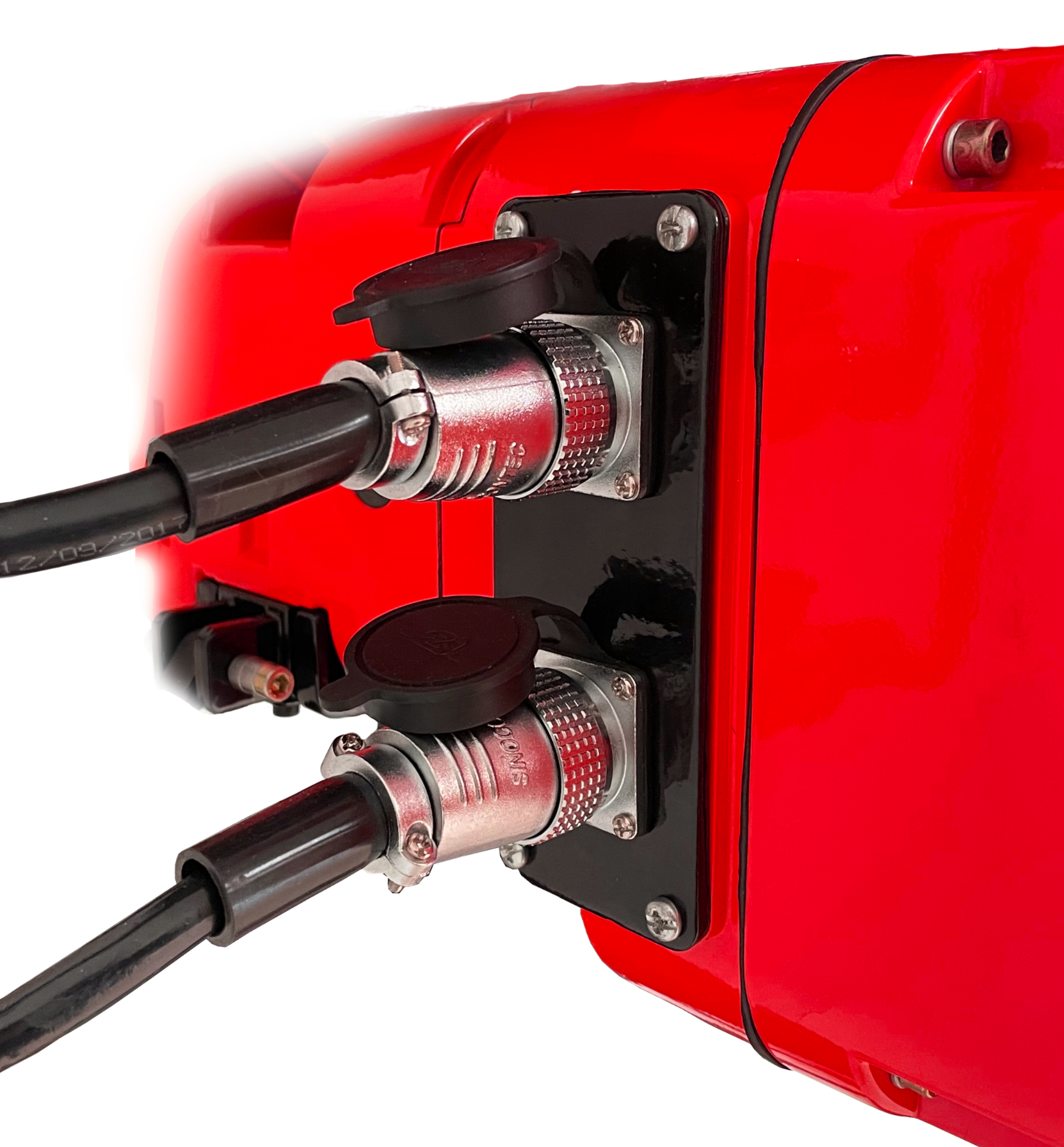

Pendant & Power Plug Connection Quick plugin pendant controller cord and power cord.
External Motor Fan Rapidly cools the hoist motor and brake, forcing air through the cooling fins.

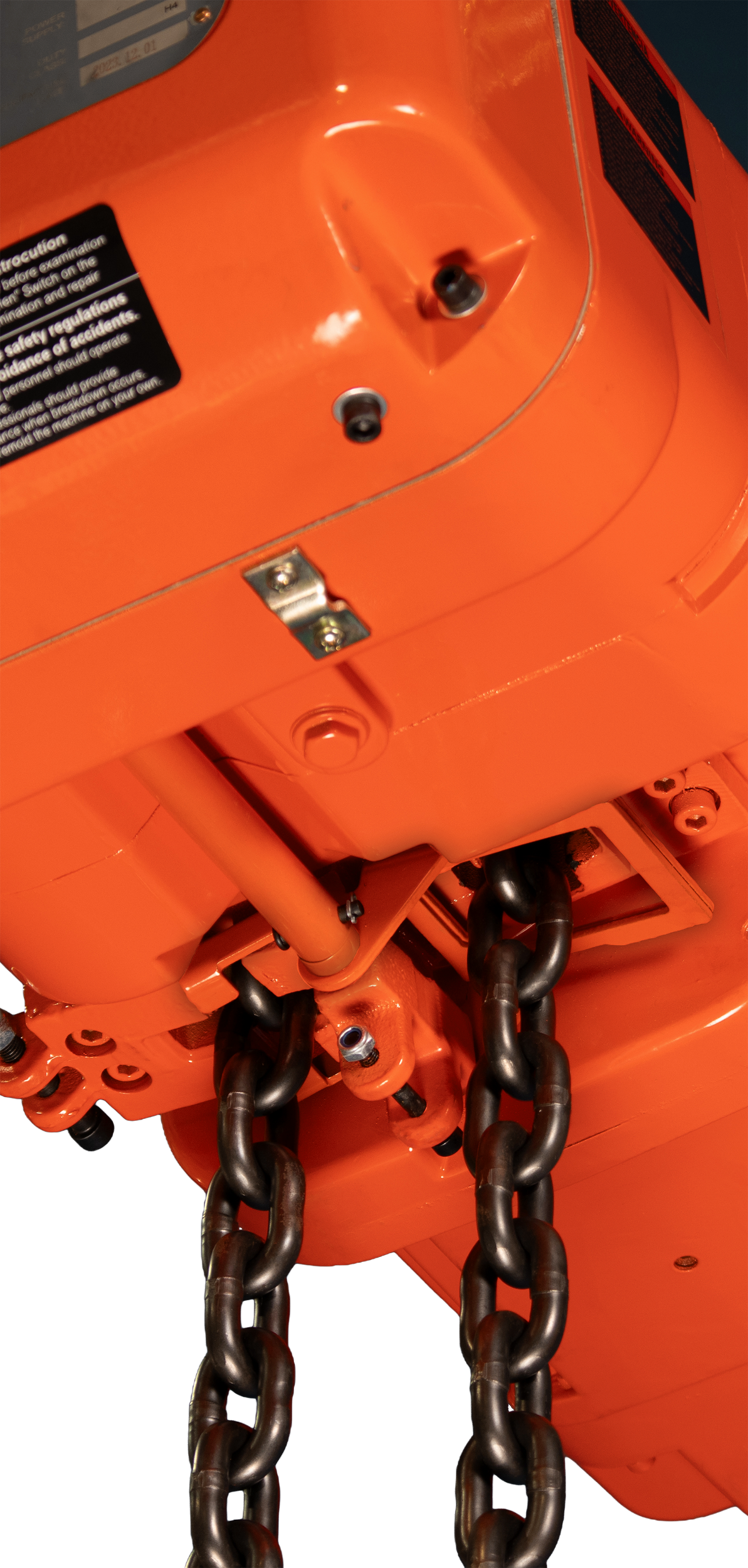

Load Chain Grade 80, case hardened FEC Japanese Chain.

Contactor Controller Mechanical interlocking contactors.

Chain Container Included with all standard hoists.

Phase Reversal Relay Hoist will not energize if the phase sequence is reversed. Relay status lights indicates incorrect phase wiring sequence.

Overload Relay Precautionary feature, protects the motor from overheating.

Quick Access Electrical Panel Hoist electrical cover is tethered to hoist housing for maximum efficiency and convenience during inspection/ maintenance.

Hinged Internal Electrical Panel Easily inspect internal components and wiring behind contactors and din rail by opening the hinged electrical panel.

Forged Swivel Hook Rotate applications 360° during lifts. Safety latches are standard. (Fixed position top Hook)
