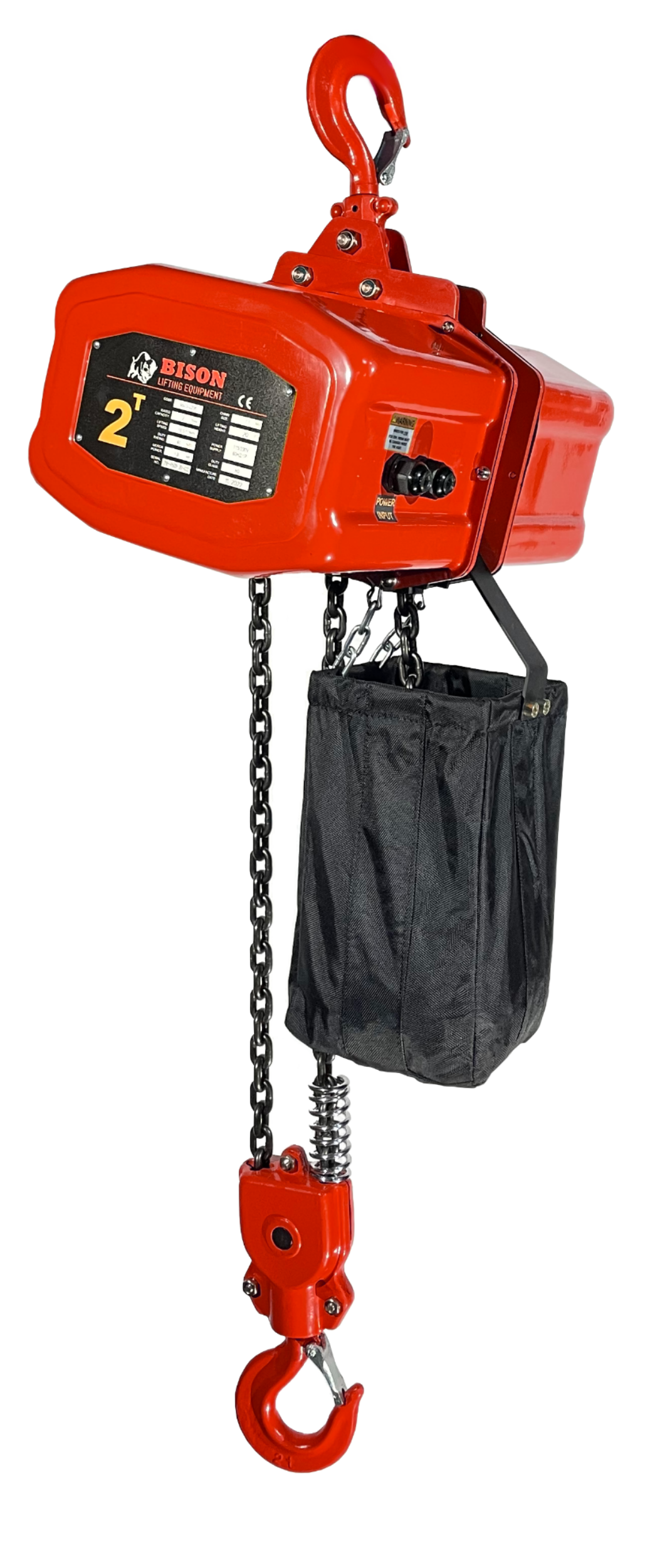

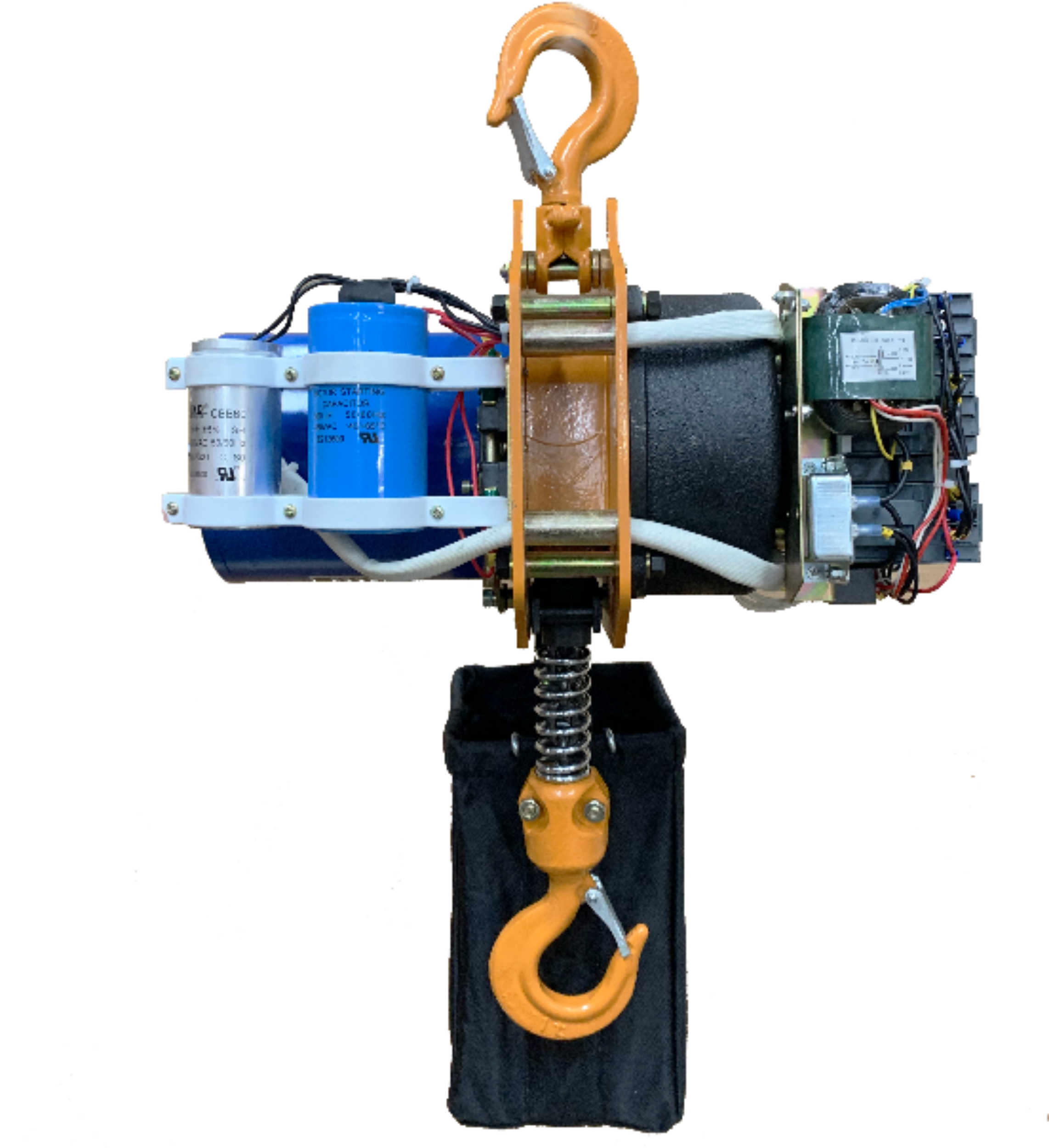

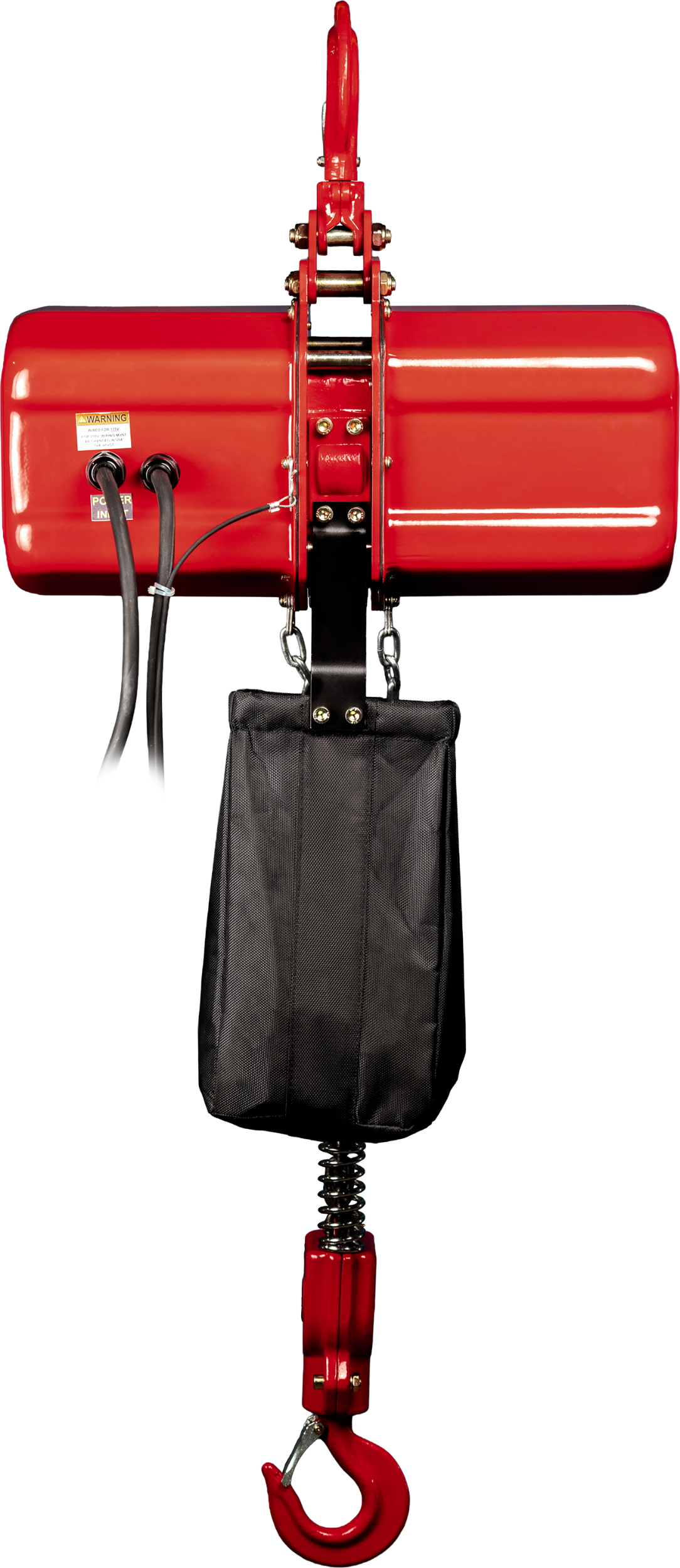

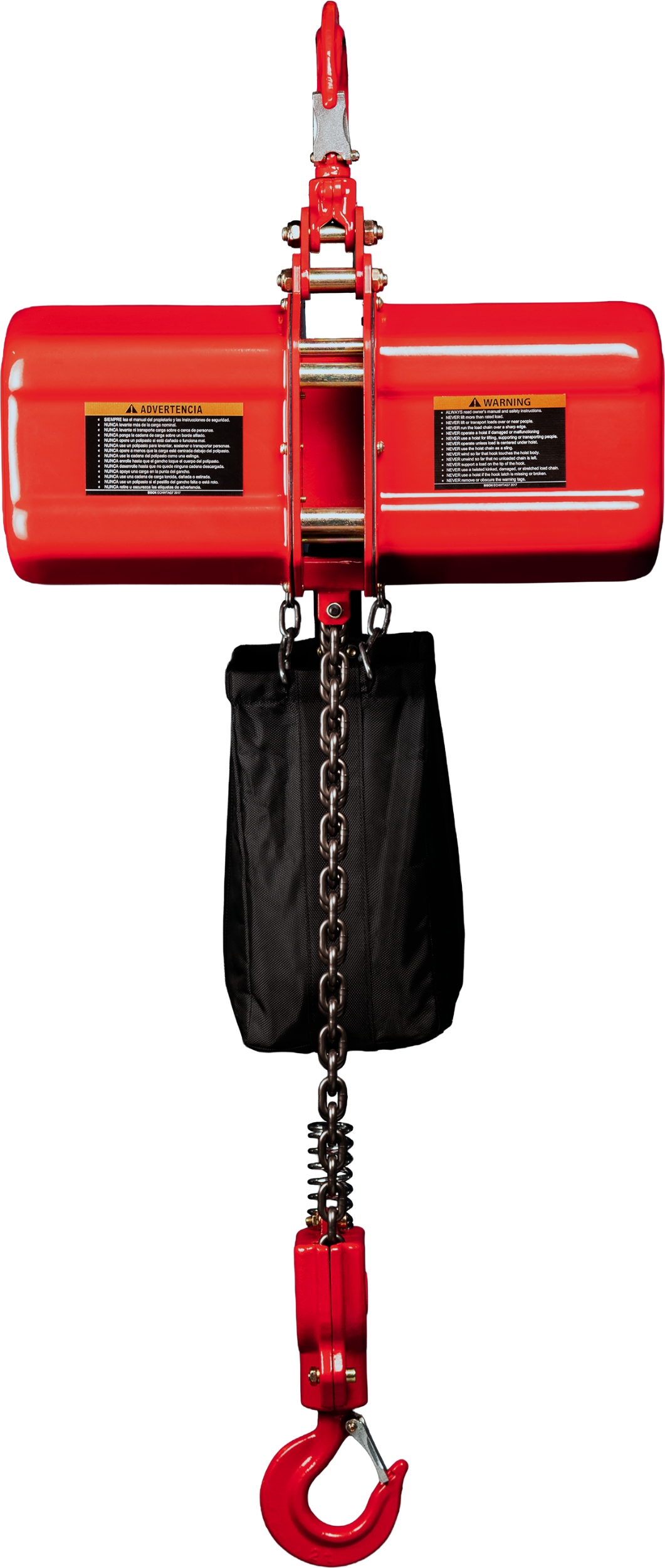

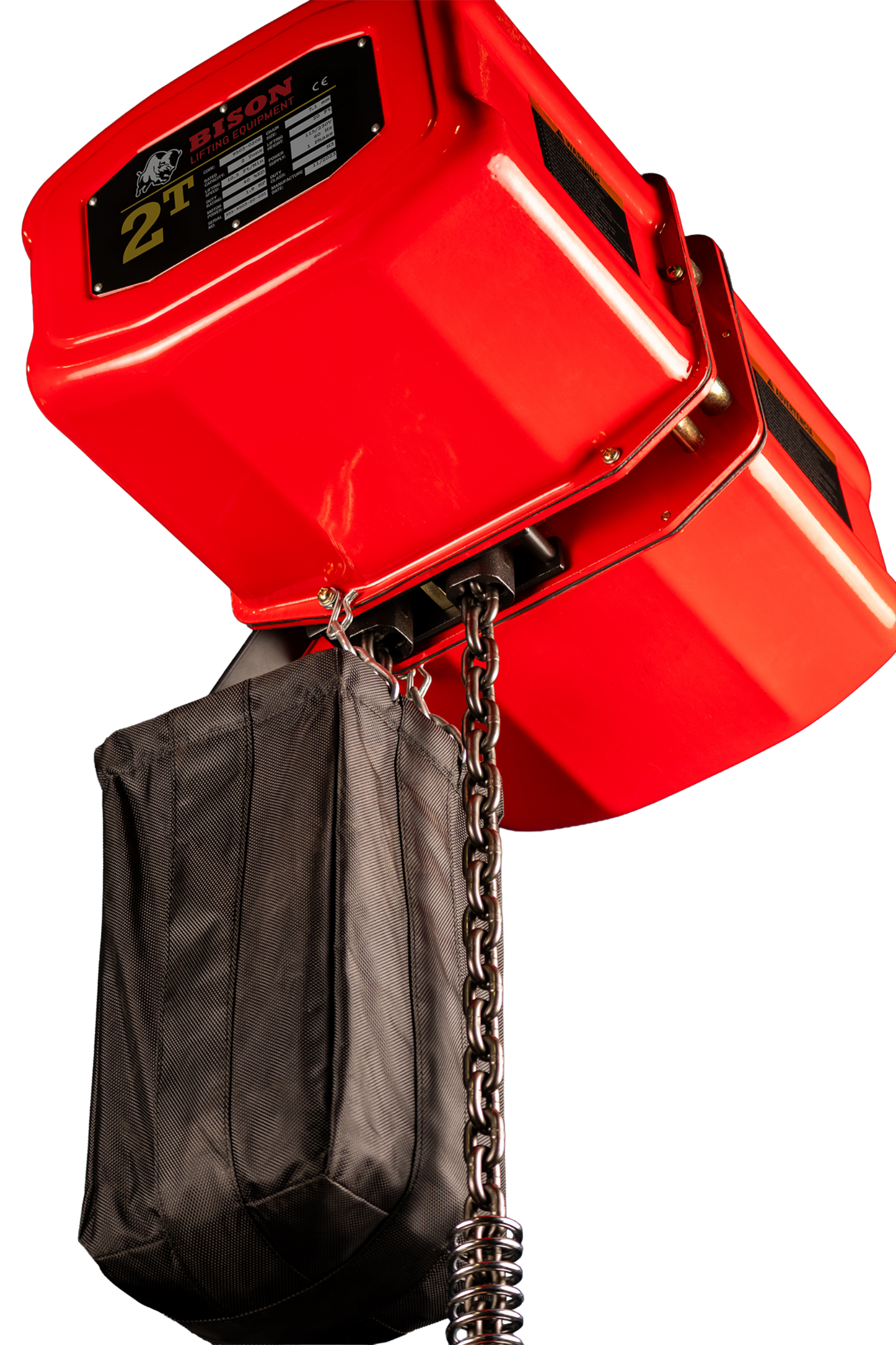

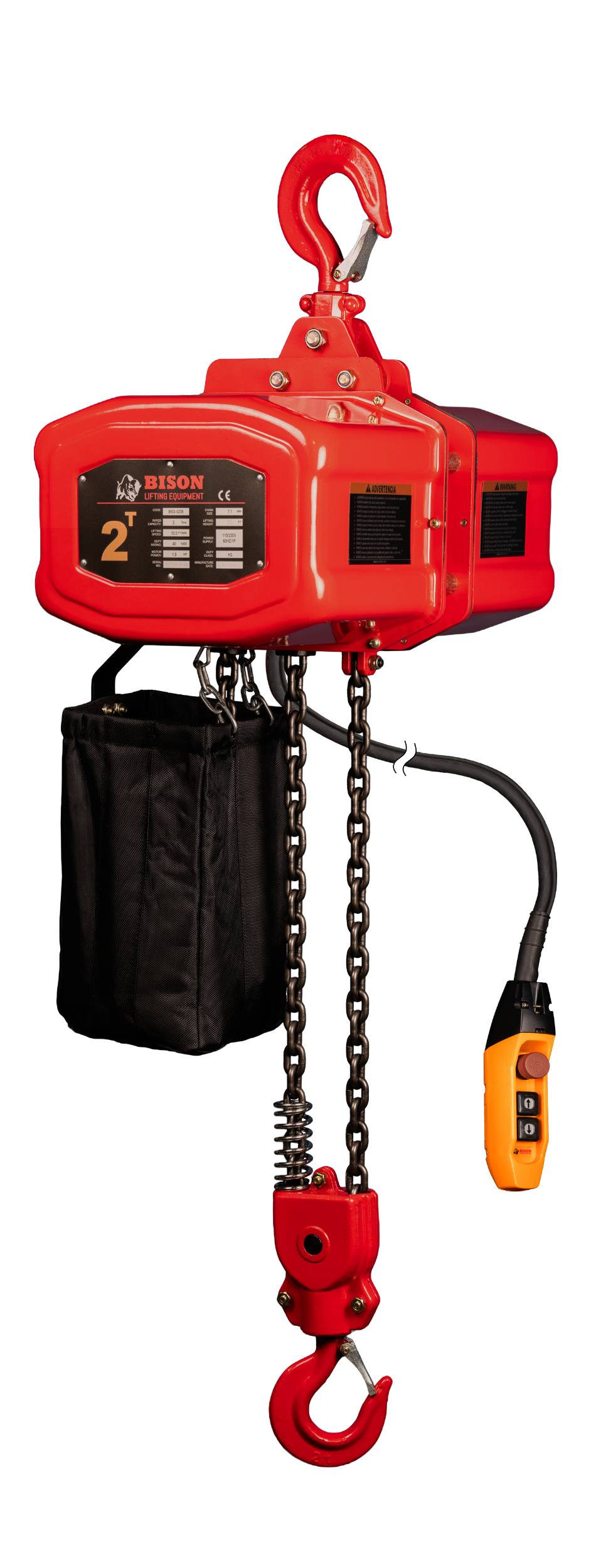

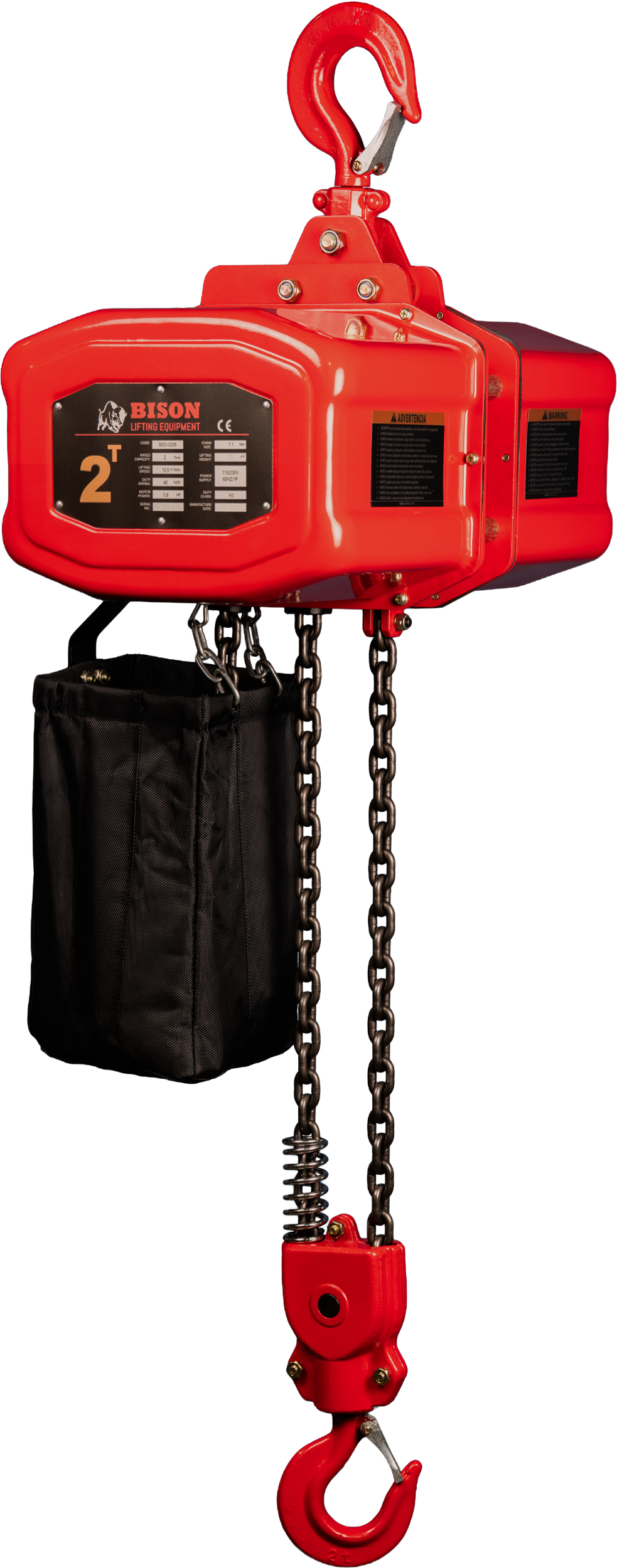

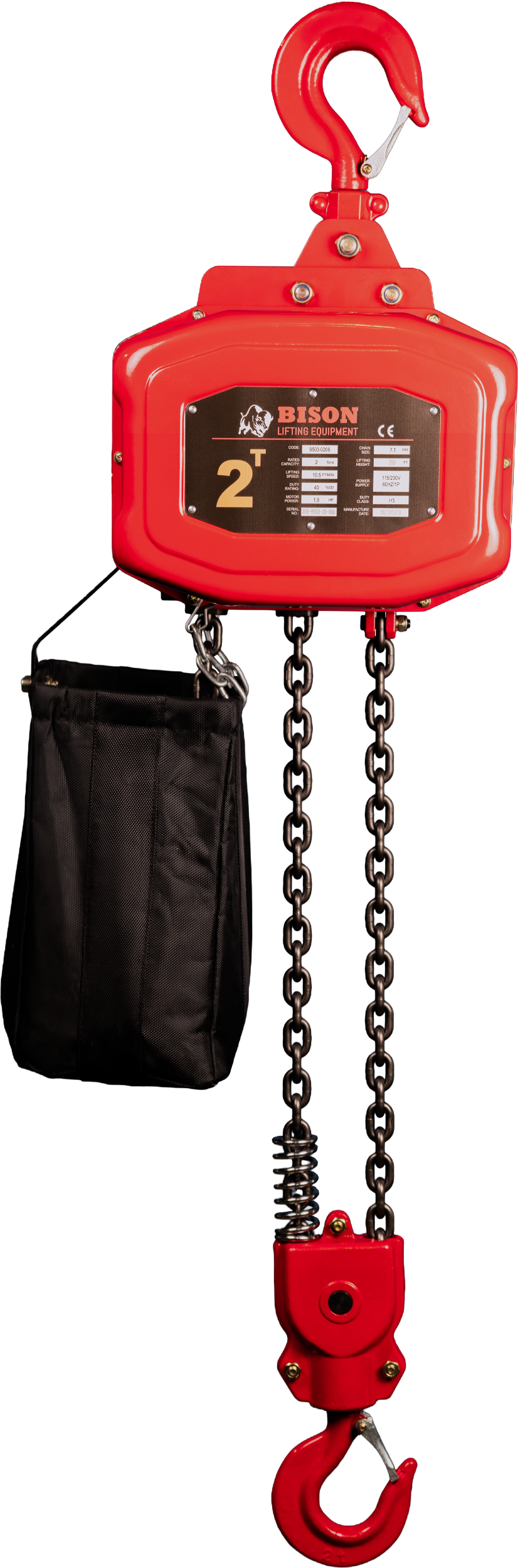

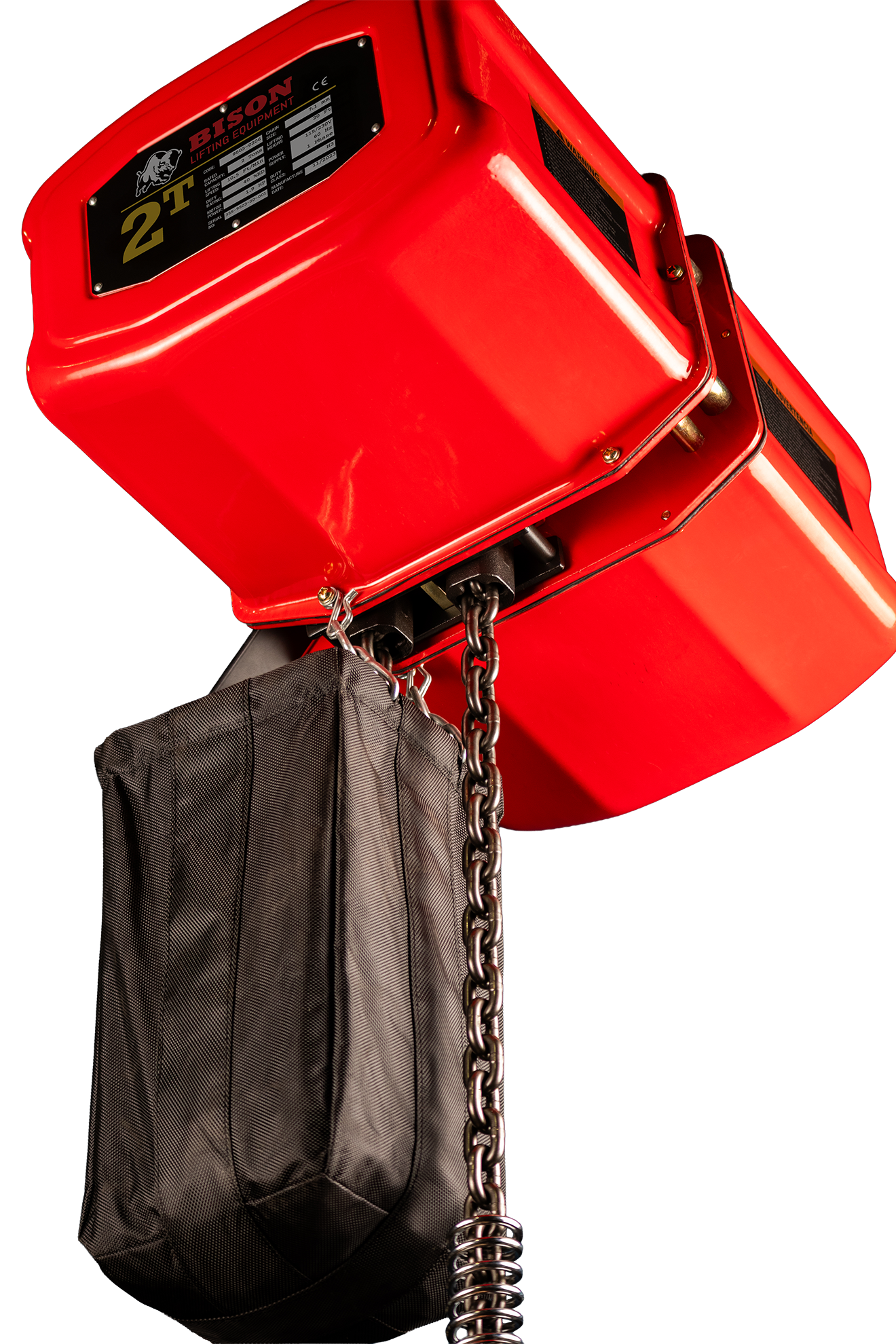

2 Ton Single Phase Hoist

SKU: HH-B020
Delivery date: 1-2 days
*

Dual Voltage
All single-phase hoists come standard from the factory wired for 115v power supply. This can easily be adjusted to 230v

Overload Protection (friction clutch)
Prevents operators from exceeding a hoist’s rated lifting capacity.

Operating Conditions
Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.

Electromagnetic AC brake
Standard AC brake is designed for a long service life.

Upper/Lower Limit Switches
Mechanical paddle limit switches. Stops the load chain from progressing past its safe limitation.

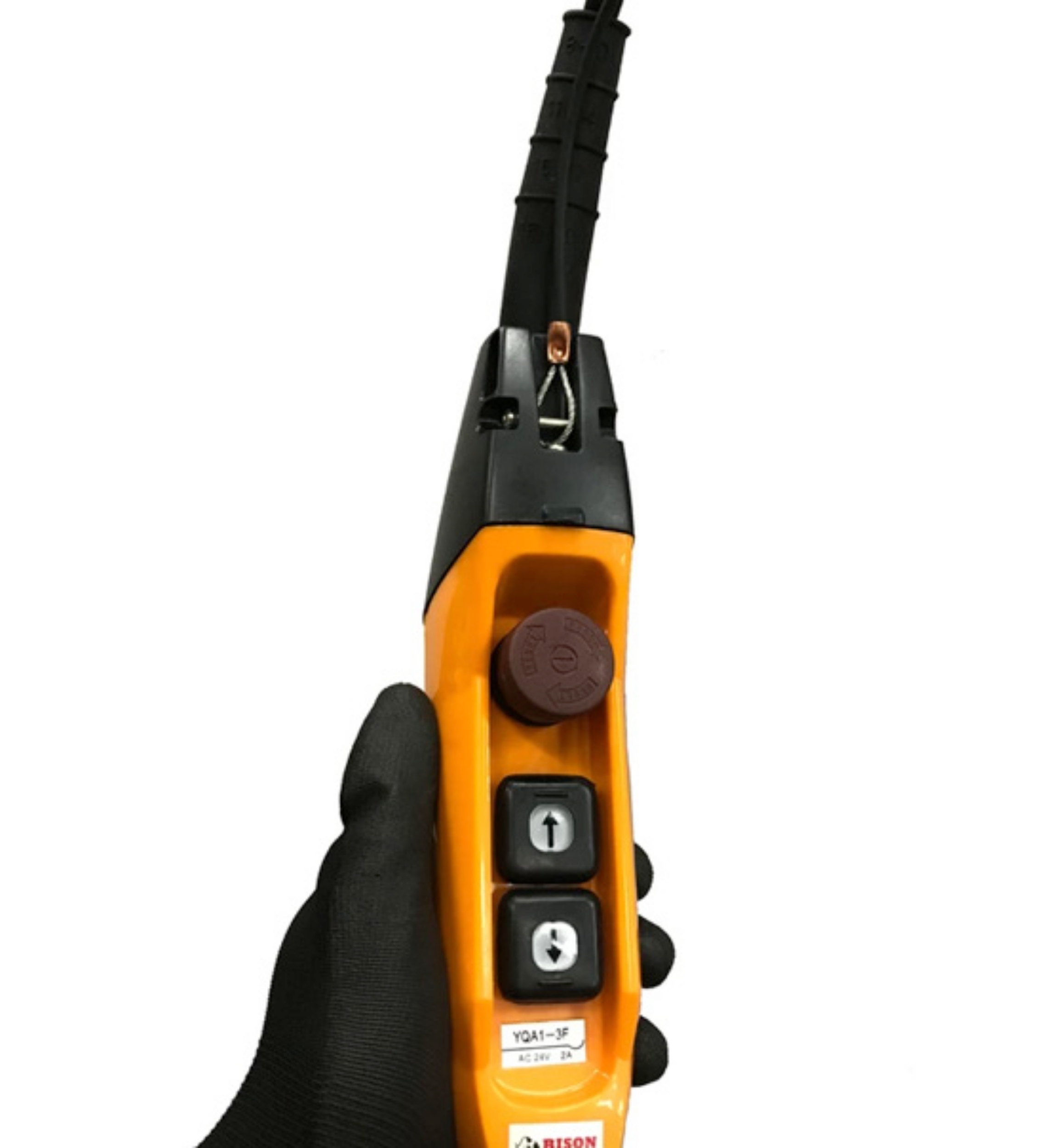

Pendant Control
Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

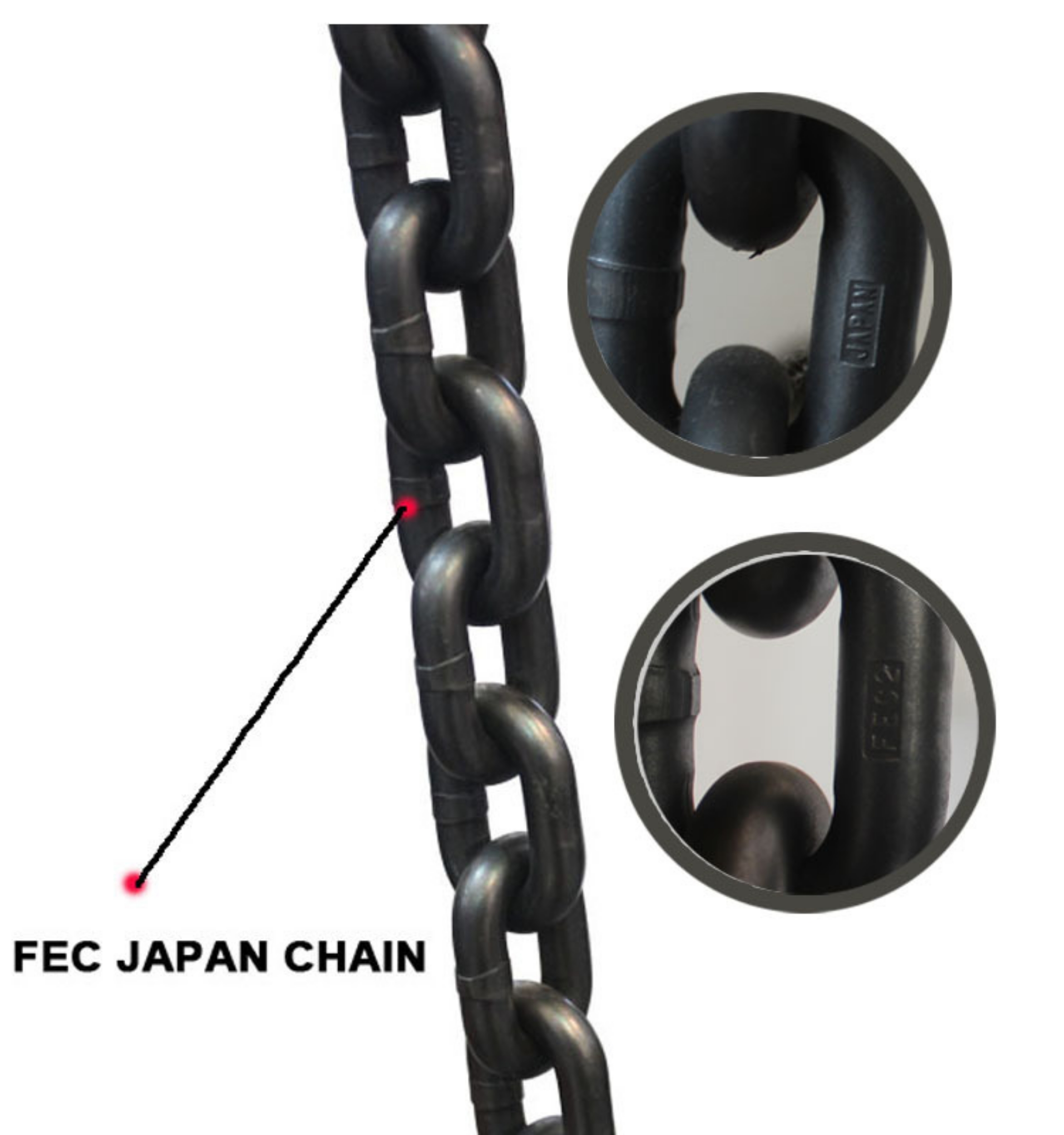

Load Chain
Grade 80, case hardened FEC Japanese Chain.

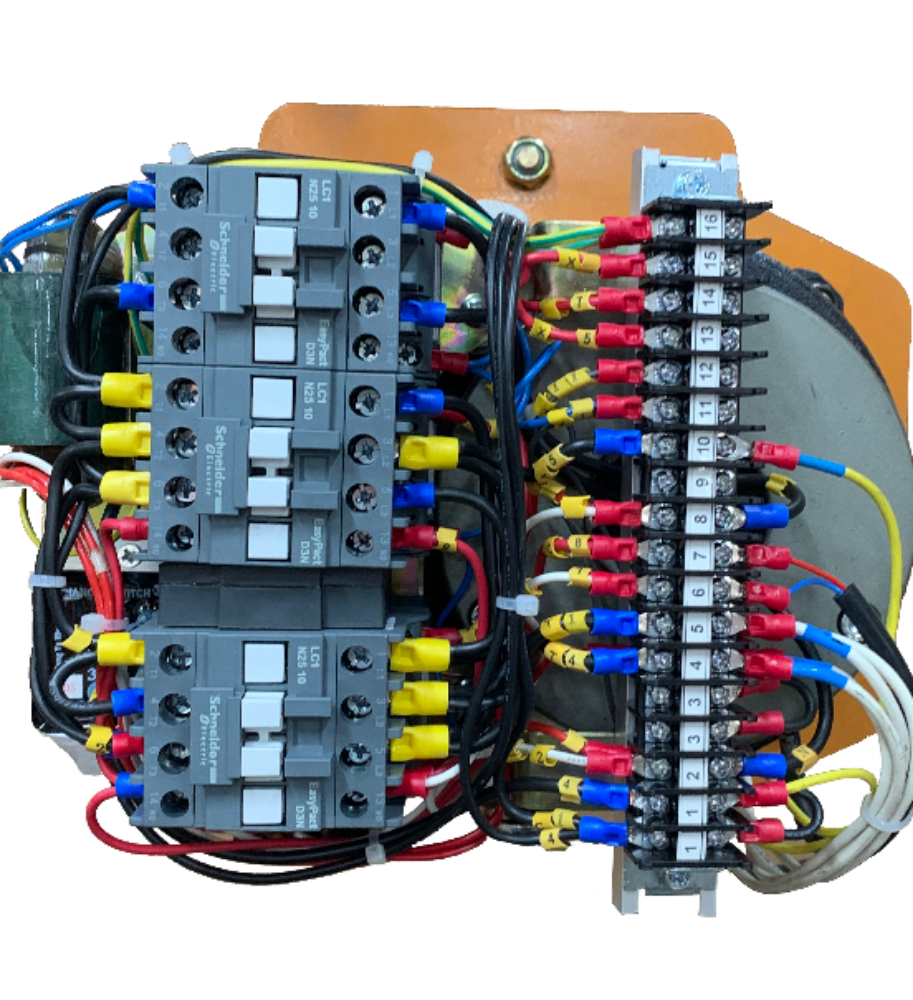

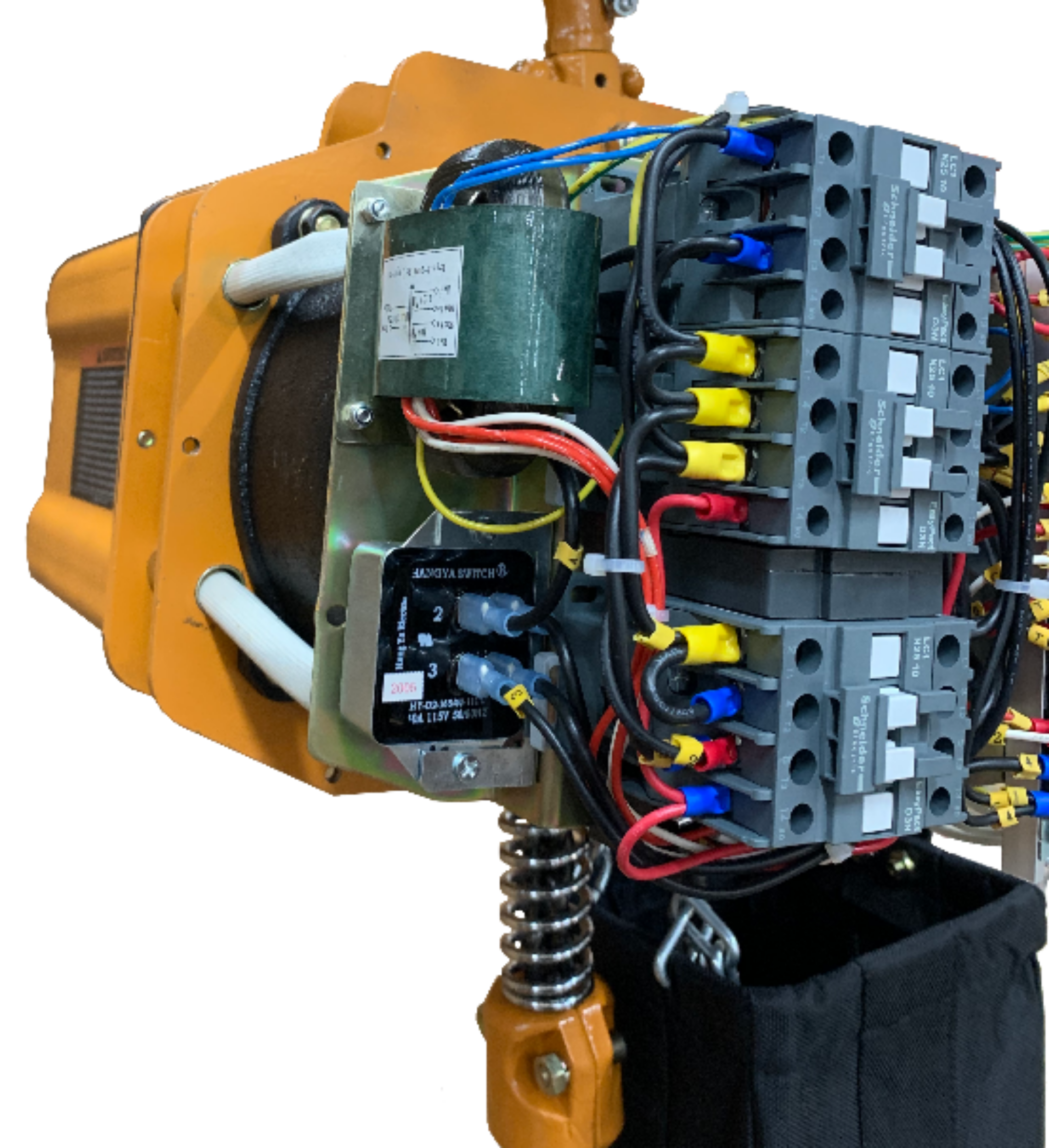

Contactor Controlled

Chain Container
Included with all standard hoists.

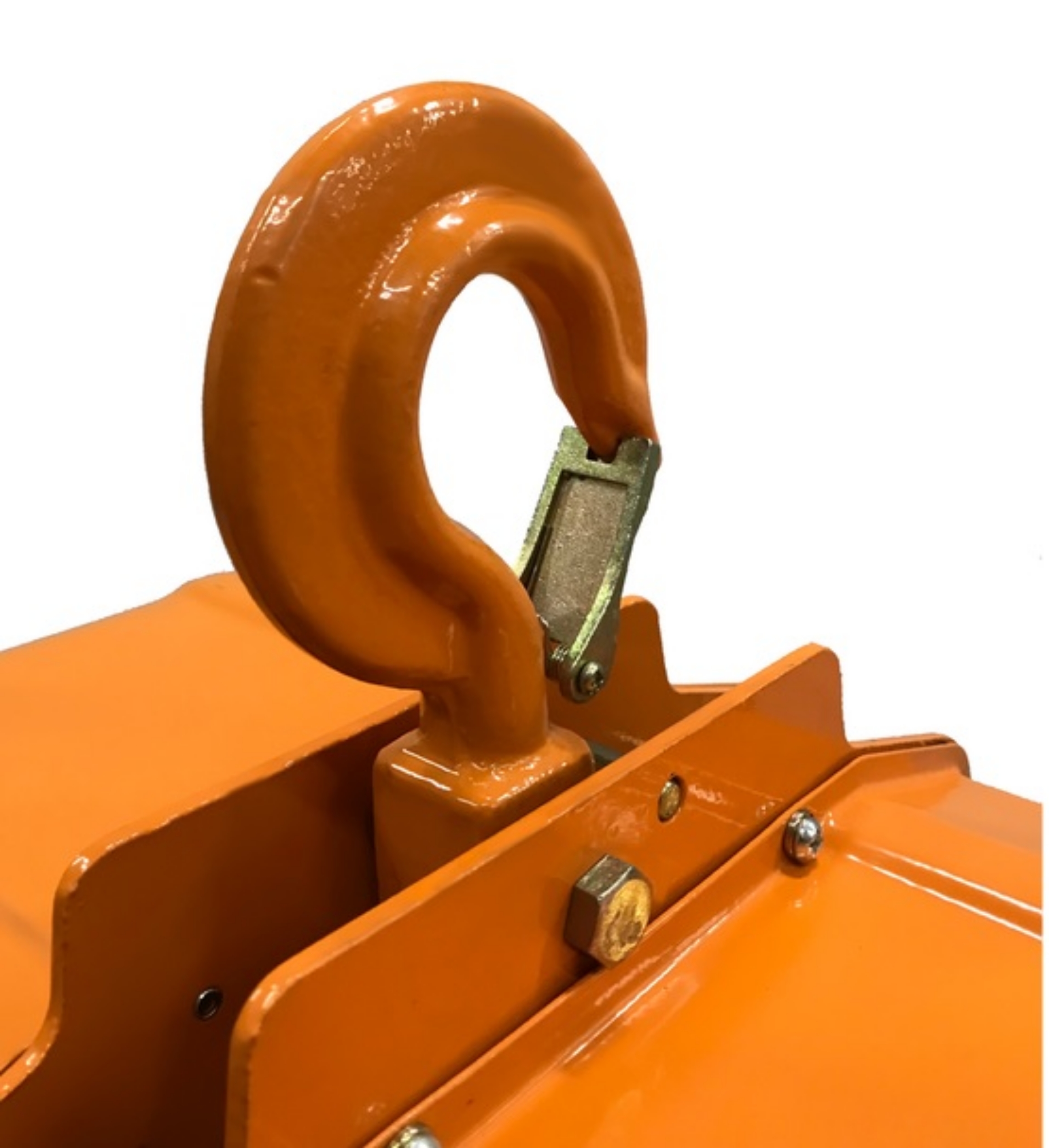

Forged Swivel Hook- Notched
Bottom hook rotates 360°. Hooks are notched to securely accommodate the heavy duty cast safety latches.

Standard Voltage
115/230v Single-Phase, 60 Hertz

Ratings
Pendant: IP65 Hoist: IP55

Standard Lift
20 Ft (custom lengths available)

Standard Pendant Cord Length
17 Ft (custom lengths available)

Standard Power Cord Length
15 Ft (custom lengths available)

Control Voltage
24v

Duty Cycle
40% ED

Chain Container
Canvas or plastic container included with all standard hoists.

Capacity Range
1⁄4 – 5 Ton

Hoist Mounting
Rigid hook; manual trolley; motorized trolley






Dual Voltage
All single-phase hoists come standard from the factory wired for 115v power supply. This can easily be adjusted to 230v

Overload Protection (friction clutch)
Prevents operators from exceeding a hoist’s rated lifting capacity.

Operating Conditions
Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.

Electromagnetic AC brake
Standard AC brake is designed for a long service life.

Upper/Lower Limit Switches
Mechanical paddle limit switches. Stops the load chain from progressing past its safe limitation.

Pendant Control
Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

Load Chain
Grade 80, case hardened FEC Japanese Chain.

Contactor Controlled

Chain Container
Included with all standard hoists.






Forged Swivel Hook- Notched
Bottom hook rotates 360°. Hooks are notched to securely accommodate the heavy duty cast safety latches.

Standard Voltage
115/230v Single-Phase, 60 Hertz

Ratings
Pendant: IP65 Hoist: IP55

Standard Lift
20 Ft (custom lengths available)

Standard Pendant Cord Length
17 Ft (custom lengths available)

Standard Power Cord Length
15 Ft (custom lengths available)

Control Voltage
24v

Duty Cycle
40% ED

Chain Container
Canvas or plastic container included with all standard hoists.

Capacity Range
1⁄4 – 5 Ton

Hoist Mounting
Rigid hook; manual trolley; motorized trolley
