1/2 Ton Three Phase Hoist- Dual Speed

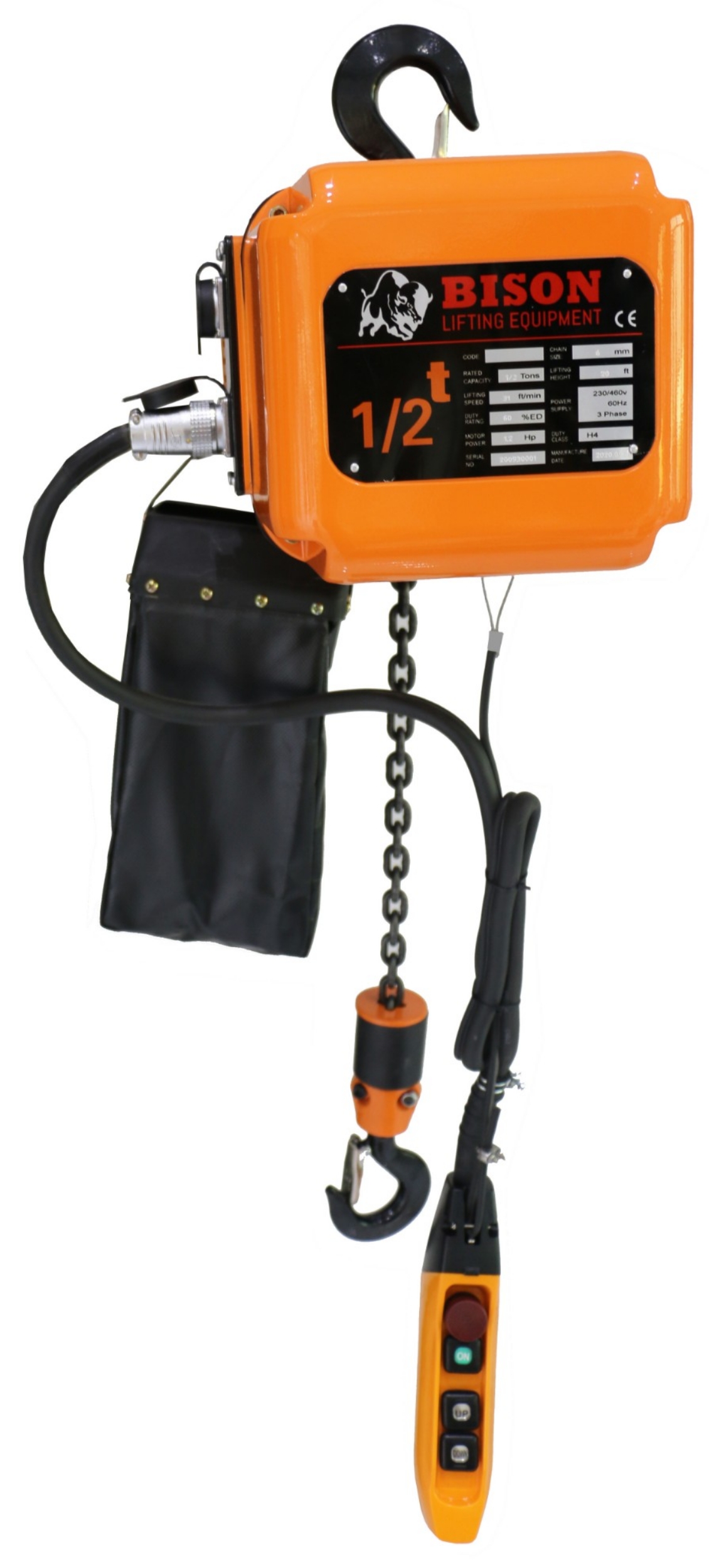

Picture of 1/2 Ton Three Phase Hoist- Dual Speed

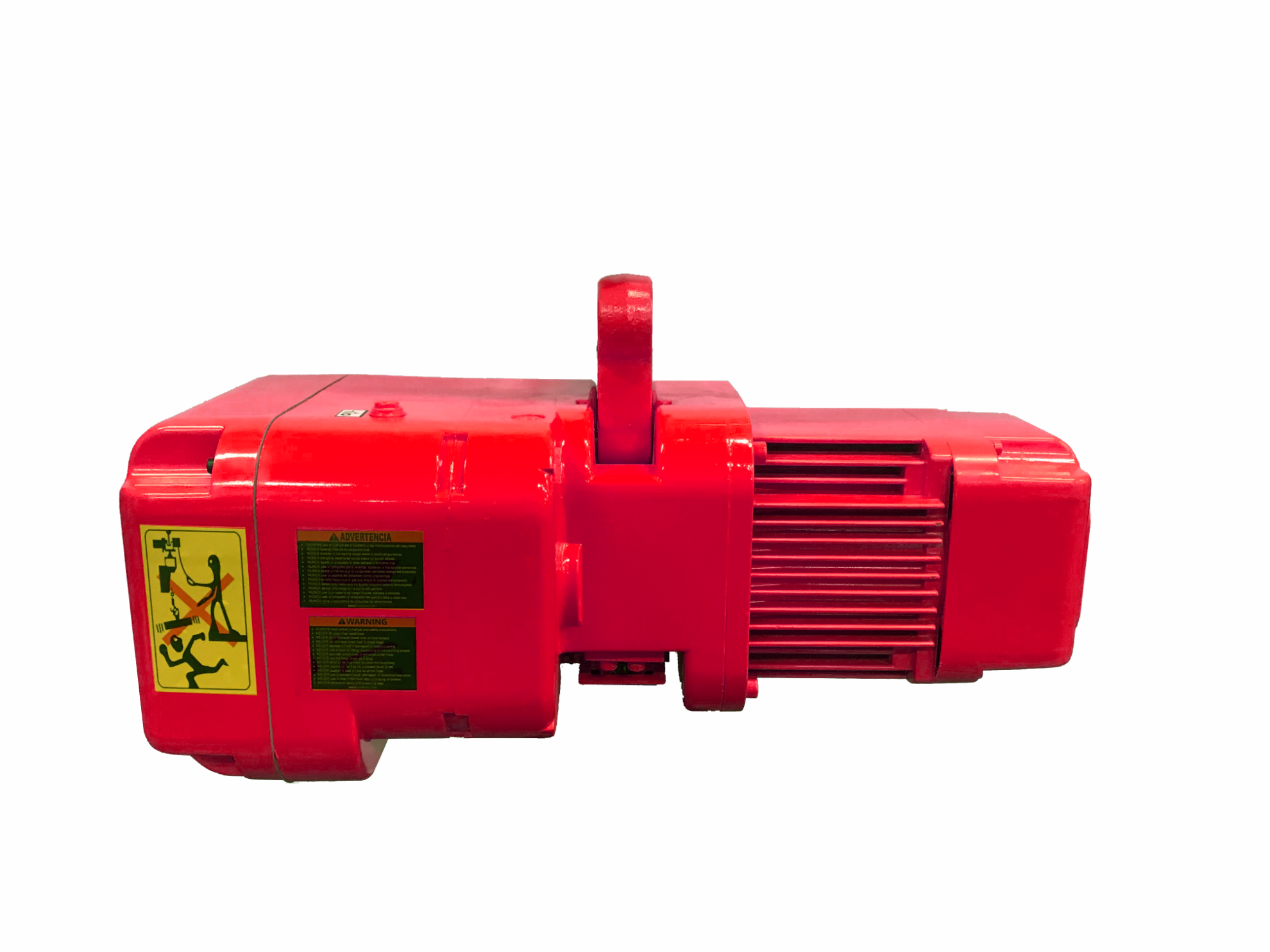

Bison Chain Hoist Side View

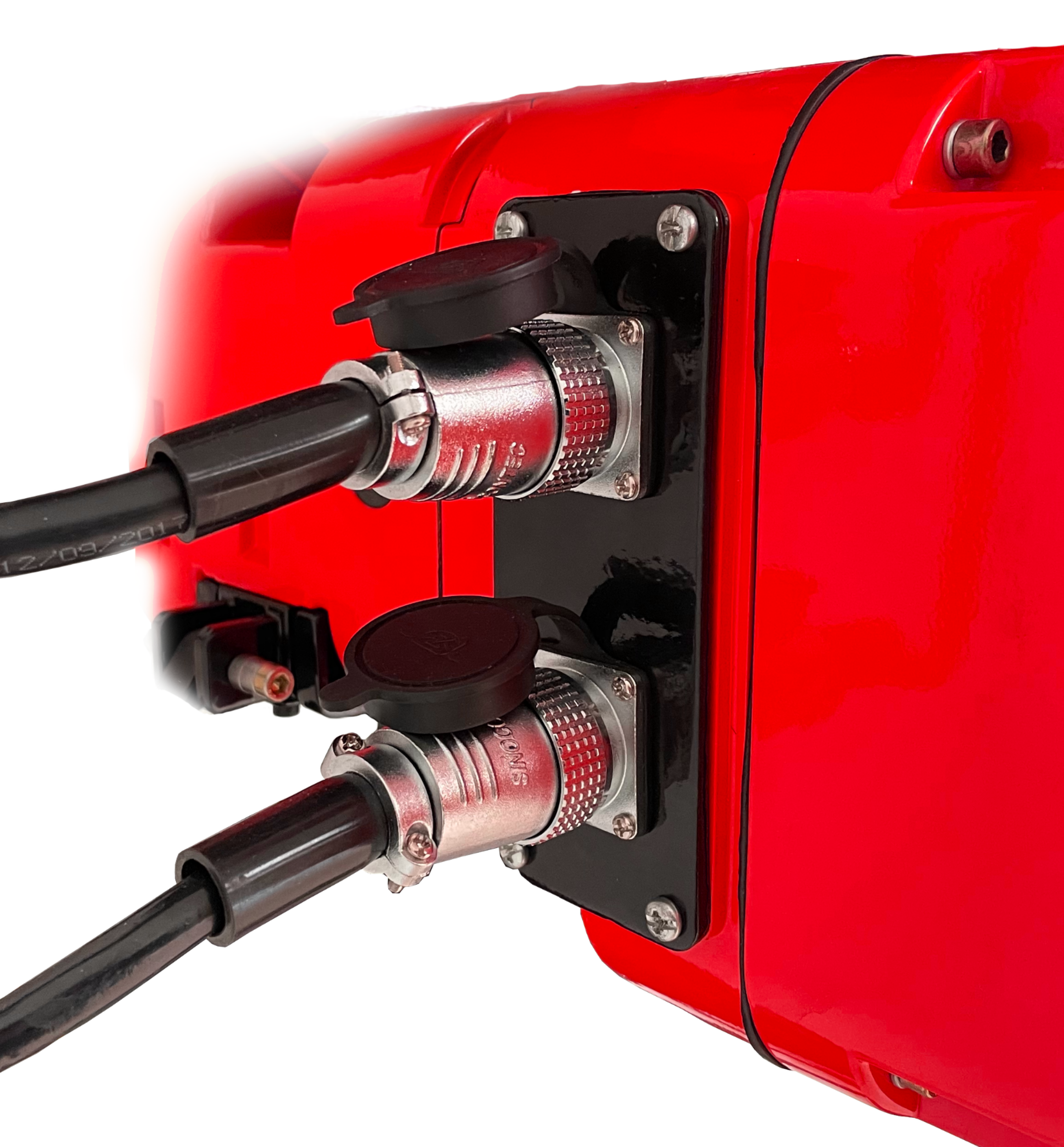

Bison Hoist Plug Connection

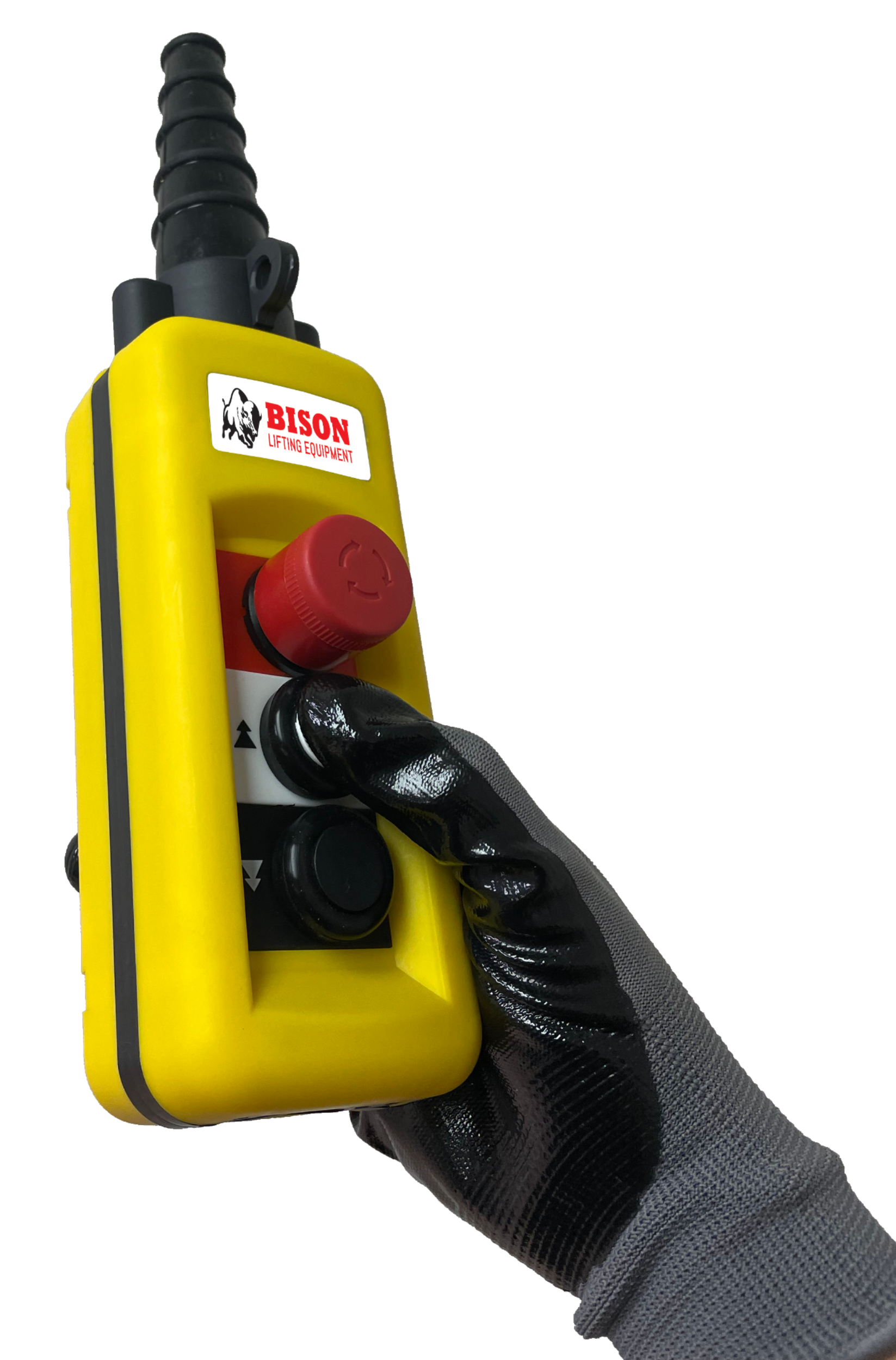

Bison Pendant Station
SKU: HHBD005SK-01D
Delivery date: 1-2 days
*
*
Overload Protection (friction clutch) Prevents operators from exceeding a hoist’s rated lifting capacity.

Compact Aluminum Body Die-cast body ensures a low headroom and lightweight construction.

Operating Conditions Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.

DC Disc Brake: Superior mechanical force ensures a load is firmly held. Fully Sealed.

Upper/Lower Limit Switches: Electrical micro-switches. Stops the load chain from progressing past its safe limitation.

Pendant Control Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

Pendant & Power Plug Connection Quick plugin pendant controller cord and power cord.
External Motor Fan Rapidly cools the hoist motor and brake, forcing air through the cooling fins.

Nickel Load Chain Grade 80, case hardened FEC Japanese Chain.

Contactor Controller Mechanical interlocking contactors.

Chain Container Included with all standard hoists.

Phase Reversal Relay Hoist will not energize if the phase sequence is reversed. Relay status lights indicates incorrect phase wiring sequence.

Overload Relay Precautionary feature, protects the motor from overheating.

Quick Access Electrical Panel Hoist electrical cover is tethered to hoist housing for maximum efficiency and convenience during inspection/ maintenance.

Hinged Internal Electrical Panel Easily inspect internal components and wiring behind contactors and din rail by opening the hinged electrical panel.

Forged Swivel Hook Rotate applications 360° during lifts. Safety latches are standard. (Fixed position top Hook)
Product Files (Downloadable Content)
Overload Protection (friction clutch) Prevents operators from exceeding a hoist’s rated lifting capacity.

Compact Aluminum Body Die-cast body ensures a low headroom and lightweight construction.

Operating Conditions Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.

DC Disc Brake: Superior mechanical force ensures a load is firmly held. Fully Sealed.

Upper/Lower Limit Switches: Electrical micro-switches. Stops the load chain from progressing past its safe limitation.

Pendant Control Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

Pendant & Power Plug Connection Quick plugin pendant controller cord and power cord.
External Motor Fan Rapidly cools the hoist motor and brake, forcing air through the cooling fins.

Nickel Load Chain Grade 80, case hardened FEC Japanese Chain.

Contactor Controller Mechanical interlocking contactors.

Chain Container Included with all standard hoists.

Phase Reversal Relay Hoist will not energize if the phase sequence is reversed. Relay status lights indicates incorrect phase wiring sequence.

Overload Relay Precautionary feature, protects the motor from overheating.

Quick Access Electrical Panel Hoist electrical cover is tethered to hoist housing for maximum efficiency and convenience during inspection/ maintenance.

Hinged Internal Electrical Panel Easily inspect internal components and wiring behind contactors and din rail by opening the hinged electrical panel.

Forged Swivel Hook Rotate applications 360° during lifts. Safety latches are standard. (Fixed position top Hook)
